How to Install a WonderPOS system

‌What's in the Package?

1. 15 Inches Screen

2. USB Printer

3. Caller ID

4. 1 Till roll

5. Cables

6. LAN cables

Installation Procedure

1. ‌Connect the power cable to the EPOS and switch on the system.

2. Connect the LAN cable to the singular port available on EPOS.

3. Connect the Power cable to the printer and switch on the printer.

4. Check if the client is using a VOIP phone / Landline & support accordingly.

5. Once the system is connected and switched on, advise client to enter the mobile number and validate it with OTP to start using the system.


‌Printer Connection / Ports

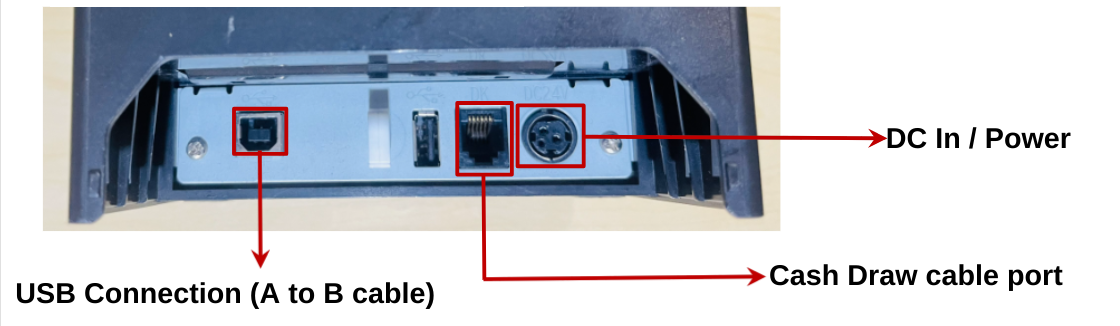

‌USB Printer

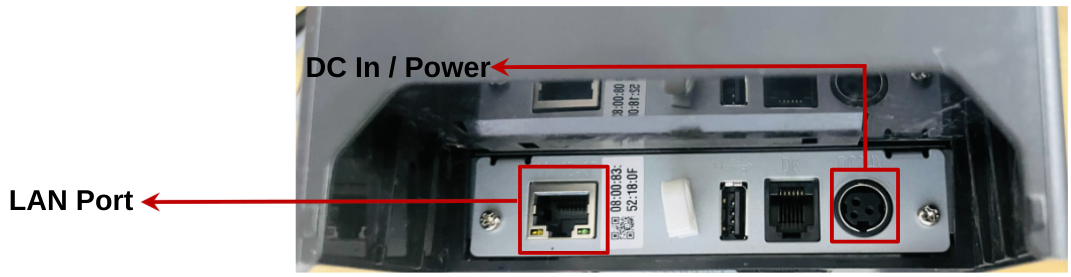

‌LAN Printer

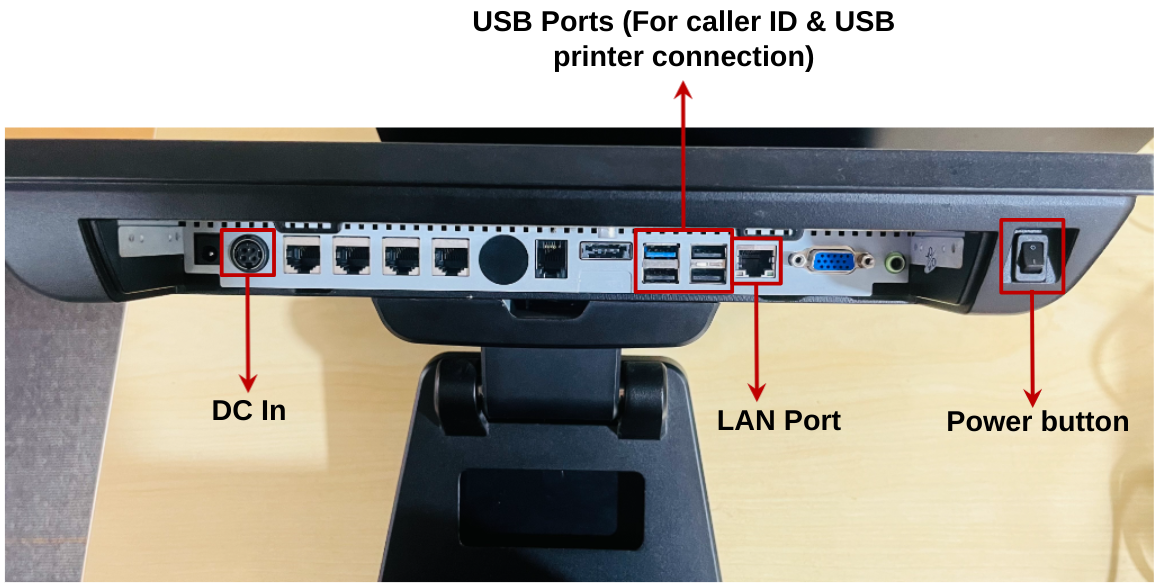

‌EPOS Connection / Ports

‌Caller ID connection

‌Post Installation Checks

1. Check if the printer is installed and the client is receiving print outs.

2. Check if the device beeps after receiving the order.


Please watch the video below for better guidance on how to install your system.
